Yanmar 4JH4E: Impeller - change - austauschen

How to replace an impeller raw-water-pump

Impellerwechsel für die Salzwasserpumpe
The Yanmar-manual is not very precise in the details we would have needed!
I hope the hints below will help a firsttimer:

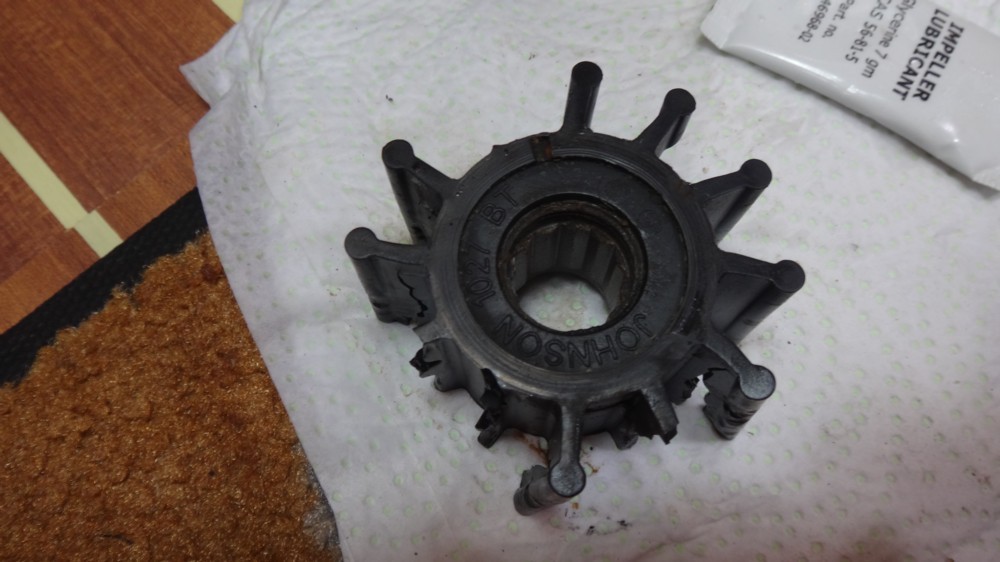

Bad! Despite there is a visible thread on the impeller, this thing is only possible to get out straigt, it just sits on a structured shaft. I removed it easily with a plier, no special tools requiered.

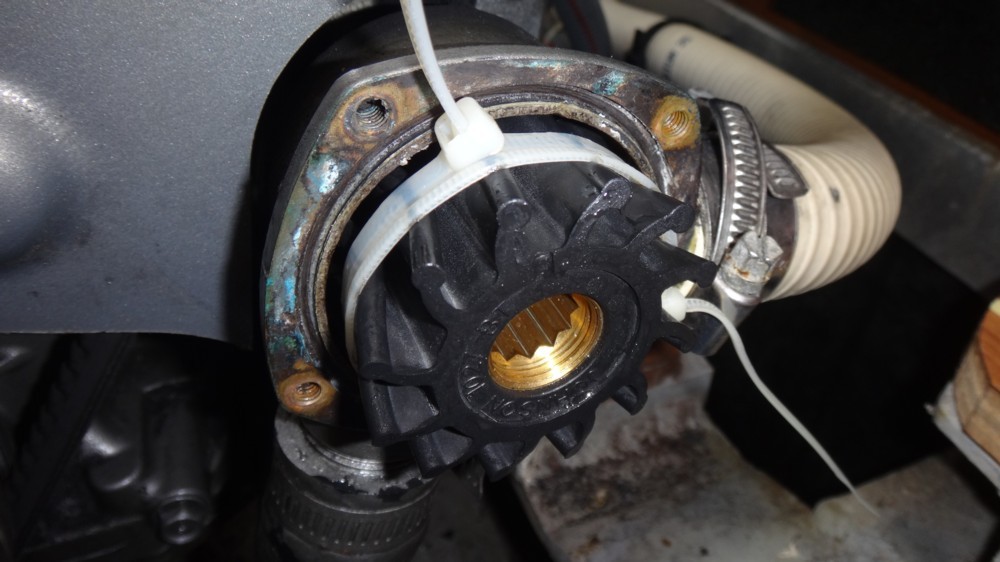

To get the new (lubricated!) impeller into the housing I use cableties to get it into the right shape.

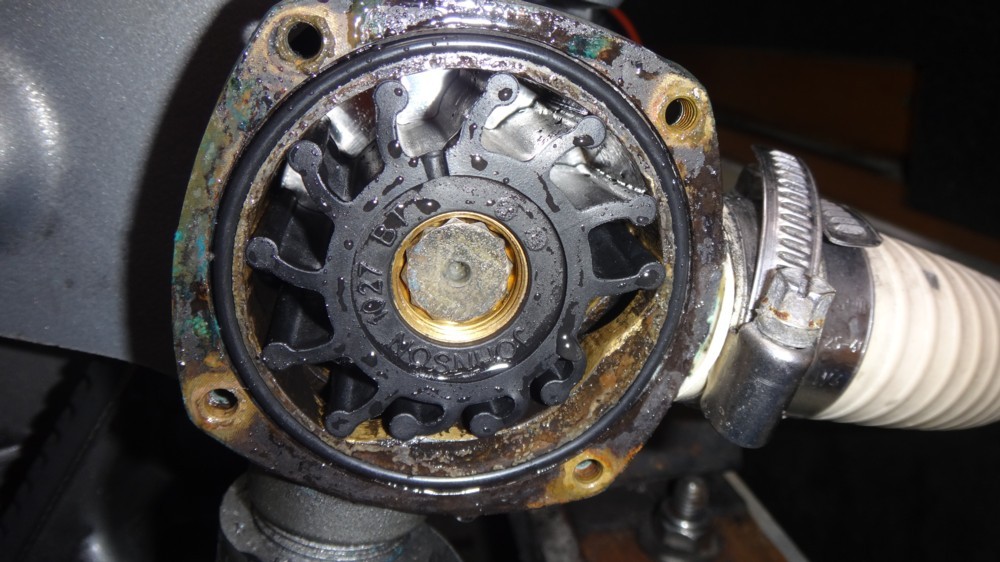

Grease the sealjoint and replace screw everything together, then inspect after an hour running the engine





Impeller: Yanmar Parts-Nr.129670-42531 for the
Sealjoint: Yanmar 202 6LP-Dt 72088 Parts-Nr.19773-42570
